Dispensing Valves


Application of low to high viscosity media in a wide range of volumes

Dispensing valves by DOPAG are used in all industry sectors for discharging low to high-viscosity media. They feature high precision and very high repeatability with regard to discharge quantity. These valves are available in different series and design sizes. Due to the variety of valve types, there is a perfectly suitable valve for each individual application.

DOPAG produce a wide range of dispensing valves, used to apply many different single component materials, such as adhesives, sealants, greases and oils, fed under pressure from a pumping system. DOPAG dispensing valves are able to handle materials with viscosities up to 1,000,000 m Pas and will withstand pressures of between 150 and 250 bar, depending on the model chosen.

For prices please contact info@scanmaster.dk or call us +45 4582 8090

Category:

Description

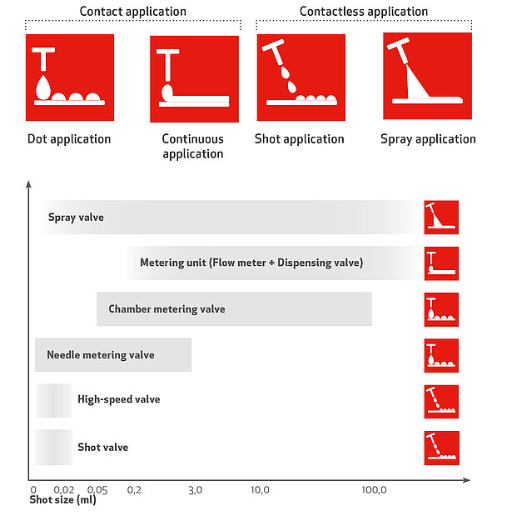

Types of dispensing valves

  • High-speed Valves
    • Shot application
    • Nozzle size Ø 0.21 – 0.81 mm
    • Input pressure max. 70 bar
    • 24V DC solenoid valve for maximum shot frequency of 100 Hz
    • Integrated 230 V AC / 155 W heating with a temperature sensor PT100

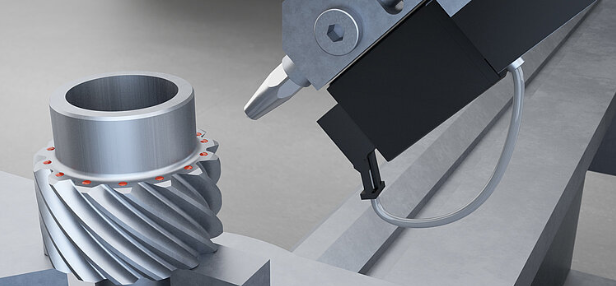

High-speed Valves Contactless application of lubricants from up to 120mm distance
  • Needle Dispensing Valves
    • Continuous application (time-pressure dispensing)
    • Internal diameter 1, 2.5, 6 and 12 mm
    • Max. input pressure 250 bar
    • Compatible with stroke detection
    • Sealing available in various sizes and material finishes

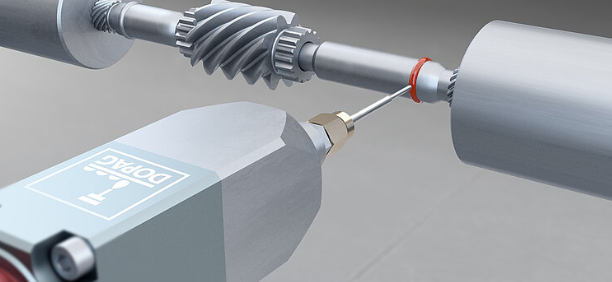

Needle dispensing valves: Clean, precise and reliable
  • Membrane Dispensing Valves
    • Continuous application (time-pressure dispensing)
    • Internal diameter 2, 4 and 8 mm
    • Max. input pressure 160 bar
    • Snuff -back effect

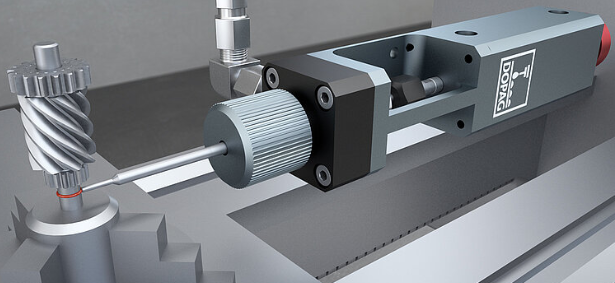

Membrane dispensing valves: Care-free dosing of reactive, abrasive or chemically aggressive fluids
  • Shot Valves
    • Shot application
    • Nozzle size Ø 0.2 – 1.0 mm
    • Input pressure max. 100 bar
    • 24 V DC solenoid valve for maximum shot frequency
    • 200 Hz SHV-01 / 30 Hz SHV-02
    • Adjustable needle rise (raster regulation)
Shot valves: An extremely fast valve that offers flexibility in material selection
  • Spray Valves
    • Spray application
    • Nozzle size Ø 0.2 – 1.5 mm
    • Material input pressure max. 35 bar
    • With 24 V solenoid valve (SPV-01) / Compact construction without solenoid valve (SPV-02)
Spray Valves: Clean and accurate spray application of grease and oil
  • Spray Guns
    • Manual spray application
    • Nozzle size Ø 0.2 – 1.5 mm
    • Material input pressure max. 50 bar
    • Pneumatic pressure max. 6 bar

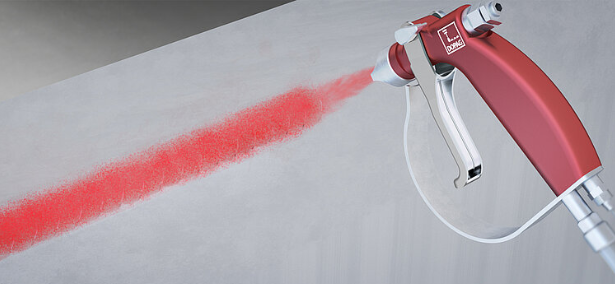

Spray Guns: A perfectly clean application by hand
