Drum Pumps for Lubricants


Feed your material clean and reliably with DOPAG

DOPAG has developed a special range of drum pumps for the processing of lubricants. The lubriLine pump range features double-acting ball valve and piston pumps that deliver greases and oils of consistency class NLGI 0 – 3. Material is fed directly from original containers. LubriLine grease pumps are an ideal option either as central material supply systems or as single feed stations. While their modularity, robustness and low maintenance requirements make them a valuable addition to any dispening set up, they are also highly economical, leaving only minimum amounts of material residue in the container.

For prices please contact info@scanmaster.dk or call us +45 4582 8090

Category:

Description

Features

  • Supply of low to medium viscosity materials
  • Flow rate up to 1.2 litres/minute at 40 double strokes
  • Pressure ratio up to 30:1
  • Compatible with lubricants of NLGI class 0 – 3
  • Differential piston pumps with fast-switching air motors
  • 1- or 2-hand operation
  • Modular design with configurable components

Tandem Pumps

All DOPAG pumps are available in a tandem version. Featuring an automatic mechanism that switches between the pumps, container change with these pumps doesn’t interrupt the production process.

Tandem Pumps

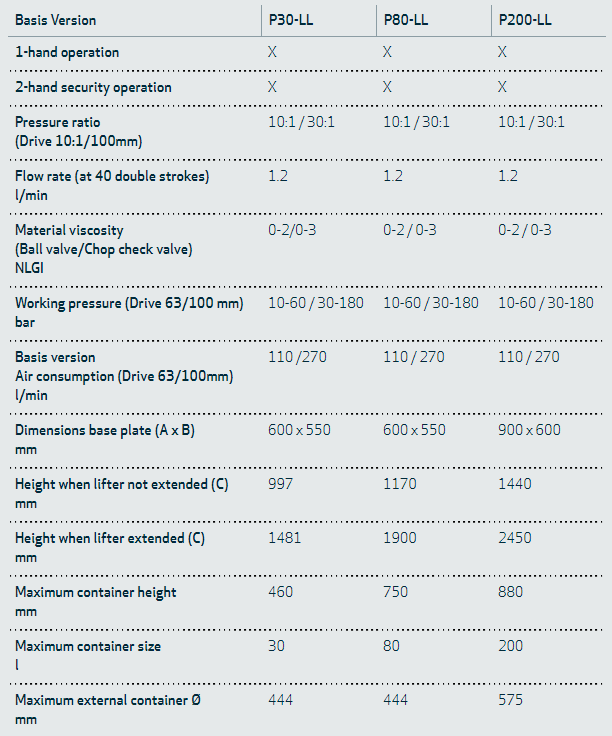

Technical Specifications
