PAR 5C


The PAR 5C metering and mixing machine offers an economic solution for a wide range of resin dispensing applications. Very reliable and precise electronic potting, casting, moulding or component bonding can be easily achieved. This machine exhibits a high degree of efficiency, accompanied by a compact floor mounted design. Twin 30lt (7.9 US gal) gravity feed reservoirs securely contain the A and B material components. The PAR 5C can handle two part materials such as epoxy, polyurethane or silicone in a very stable and careful process. The new METER MIX® in-line drive mechanism (ILD) provides characteristics which are not normally associated with pneumatic machine technology: advanced flow rate and ratio control characteristics. High mixing ratios or large differences in viscosities are also possible with this machine.

Category:

Description

Typical Applications

  • Electronic Potting
  • Casting
  • Moulding
  • Component Bonding
  • Brush Setting

Typical Materials

  • Polyurethane
  • Epoxy
  • Silicone
  • Methacrylate

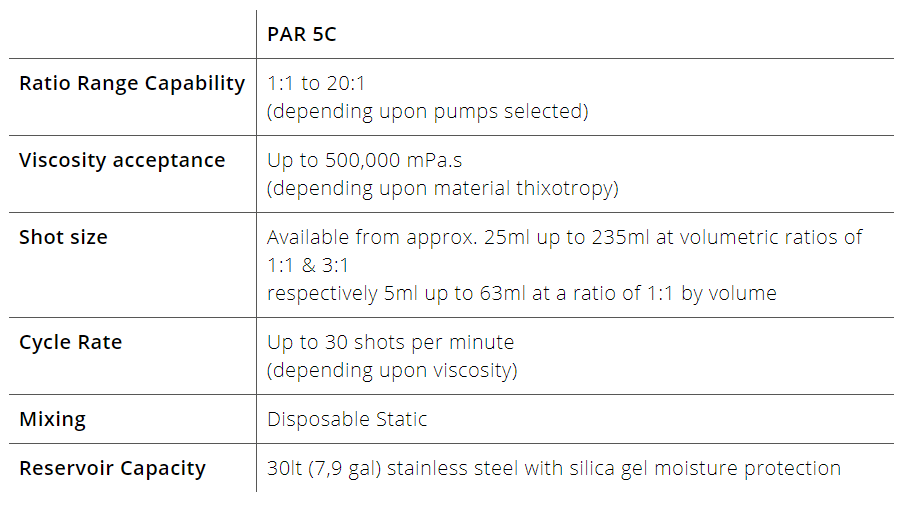

Technical Data

Standard Features

  • Floor mounted machine with castors for portability
  • Metering Pumps: Single acting positive displacement
  • Mixer Valve: Pneumatically operated TSV601 Mixer Valve
  • “Metered Shot” and “Operator Controlled” shot size selection
  • Shot size adjuster with digital reference indicator
  • Service indicator lamp
  • Controls:
    • Integrated PLC control with HMI operator interface
    • Dispense pressure regulator and gauge
    • Air supply filter/regulator and gauge with connection check unit
    • Main Off/On switch
    • Emergency Stop & Reset Buttons
    • Anti-gel automatic purge timer
    • Shot counter/repeater unit for multiple shot applications
    • Either foot pedal or hand held trigger start options available
    • 230V/50Hz or 110V/60Hz AC electric supply + compressed air @ 80 p.s.i.

Available Options

  • 6lt (1,58 gal), 12lt (3,16 gal), and 18lt (4,74 gal) capacity reservoir sizes
  • Digitally controlled heating to reservoirs, pumps and hoses
  • Electric agitation to material reservoirs
  • Electronic low-level sensing to material reservoirs with visual and audible alarms
  • Stainless steel wetted parts to protect against corrosion
  • Hardened parts to protect against abrasion
  • Nitrogen purge facility to material reservoirs
  • Vacuum degassing to material reservoirs
  • Rotary/Static disposable mixing option (electrically driven)
  • Bulk feed transfer pump facility directly from suppliers containers
