LiquidShot 4C & LiquidShot 4CT

The METER MIX® LiquidShot 4C & LiquidShot 4CT can be perfectly used as a 2-part epoxy dispenser for potting applications. The machines are a convincing and economical solution with a high degree of operator functionality. This guarantees robust and proven metering and mixing principles. Furthermore, this all-round model could be also used for the processing of other two component materials such as silicone or polyurethane in a wide range of applications. Specifically developed to incorporate the latest METER MIX® in-line drive mechanism (ILD), the LiquidShot 4C & LiquidShot 4CT machines provide reliable, advanced flow rate and ratio control characteristics during dispense, not normally associated with pneumatic machines.

Categories: ,


Typical Applications

  • Electronic Potting
  • Casting
  • Moulding
  • Component Bonding
  • Brush Setting


  • Polyurethane
  • Epoxy
  • Silicone
  • Methacrylate

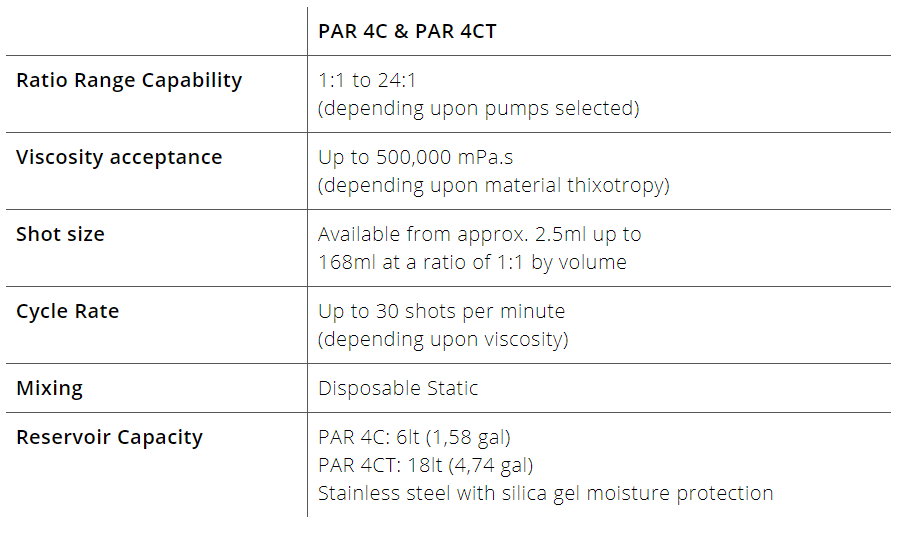

Technical Data

Standard Features

  • Bench top machine with adjustable feet (PAR 4C)
  • Floor standing machine on castors for portability (PAR 4CT)
  • Metering Pumps: Single acting positive displacement
  • Mixer Valve: Pneumatically operated TSV601 Mixer Valve
  • “Metered Shot” and “Operator Controlled” shot size selection
  • Shot size adjuster with digital reference indicator
  • Service indicator lamp
  • Controls:
    • Integrated PLC control with HMI operator interface
    • Dispense pressure regulator and gauge
    • Air supply filter/regulator and gauge with connection check unit
    • Main Off/On switch
    • Emergency Stop & Reset Buttons
    • Anti-gel automatic purge timer
    • Shot counter/repeater unit for multiple shot applications
    • Either foot pedal or hand held trigger start options available
    • 230V/50Hz or 110V/60Hz AC electric supply + compressed air @ 80 p.s.i.

Available Options

  • 12lt (3,16 gal) capacity reservoir sizes (6lt/1,58 gal, 12lt/3,16 gal & 30lt/7,9 gal optional on PAR 4CT)
  • Digitally controlled heating to reservoirs, pumps and hoses
  • Electric agitation to material reservoirs
  • Electronic low-level sensing to material reservoirs with visual and audible alarms
  • Stainless steel wetted parts to protect against corrosion
  • Hardened parts to protect against abrasion
  • Nitrogen purge facility to material reservoirs
  • Vacuum degassing to material reservoirs
  • Rotary/Static disposable mixing option (electrically driven)
  • Bulk feed transfer pump facility directly from suppliers containers
