Description
Industries
These modern metering systems can be used in any industry where materials need to be applied in a high precision and repeatable way.
- Automotive
- Electrical and electronic
- Renewable energy
- Aerospace
- White goods
- and many more…
Typical Applications
- Coating
- Encapsulating
- Gluing
- Laminating
- Sealing
Features and Benefits
- Simple operation
- Variable mixing ratio
- Variable output rate
- Continuous flow rate
- Solvent free
Function
Pressure vessels, mounted onto a portable chassis, are used to supply the material into the piston type metering pumps where they are proportioned at the pre-selected ratio. The pumps are driven by an air motor. The stroke of the air motor is transferred to the pumps via a lever system. The mixing ratio can be infinitely adjusted between its limits by means of the lever system. The system is controlled by a metering
computer.
The variomix is fitted with a static mixing system that includes a 2K valve combined with a disposable
static mixer. The valve contains an infinitely adjustable «snuffer» effect to avoid dripping after metering has finished. Should mixed material be allowed to cure in the mixer, it can be replaced simply and inexpensively, thus avoiding a time consuming, expensive and environmentally damaging flushing cycle.

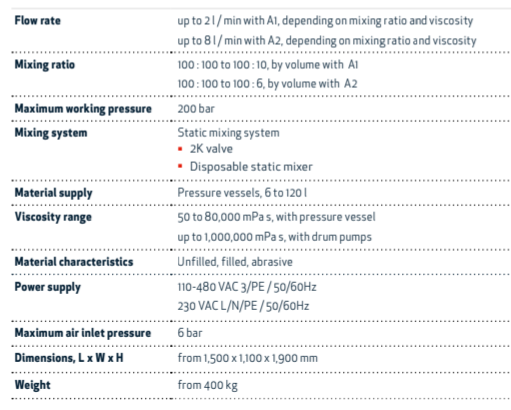

Technical Specifications
