Silcomix - LSR dosing system

Silcomix – LSR dosing system

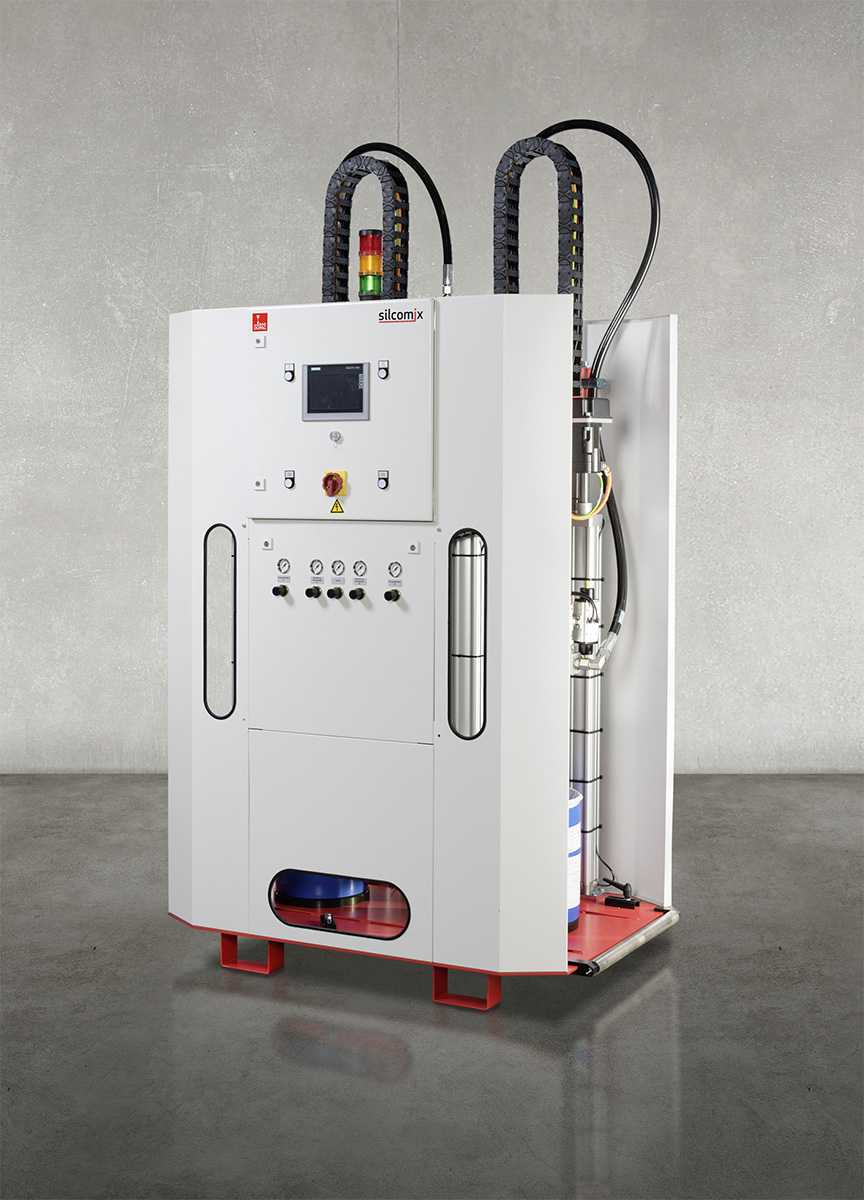

The silcomix is a compact-designed, electrically driven piston pump metering and mixing system. It is used for continuous processing of medium to high-viscosity silicone-based media with a mixing ratio of 100:100. Metering is carried out directly from the original containers with a size of 20 or 200 l.

For prices please contact info@scanmaster.dk or call us +45 4582 8090

Description

Extremely precise and efficient dosing of LSR in injection moulding processes

Features and benefits

High energy efficiency through servo-electrically driven piston pumps
Extremely low material waste through simultaneous drum drainage and use of special supply pumps (material residual quantity in drum < 1 %)
User-friendly system operation thanks to 7” touch panel
Precise adherence to mixing ratio through synchronous switching of piston pumps (SWIPSYNC)
Compact, space-saving system design
Compatible with pallet trucks and forklifts
Extremely good control behavior; even small shot sizes are possible in optimal quality
Flexible operation thanks to processing from 20 or 200l containers (on a chassis)
Process reliability thanks to data monitoring and archiving
Processing of abrasive media for pigment metering through special sealing technology
